Battery Assembly

Battery Assembly Equipment

Pouch, prismatic & cylindrical cell assembly equipment

±0.01mm

Cleanroom ISO 7

Full-Auto

46파이 탭리스

Request Quote

Key Engineering Features

High-precision automated assembly equipment for pouch, prismatic, and cylindrical cell assembly. Cleanroom-optimized assembly lines designed and manufactured.

Supports pouch, prismatic, cylindrical & 46φ tabless cell types

Pouch, prismatic & cylindrical cell assembly equipment

ISO Class 7 cleanroom design

Pouch, prismatic & cylindrical cell assembly equipment

Integrated inline vision inspection system

Pouch, prismatic & cylindrical cell assembly equipment

The Engineering Advantage

High-precision automated assembly equipment for pouch, prismatic, and cylindrical cell assembly. Cleanroom-optimized assembly lines designed and manufactured.

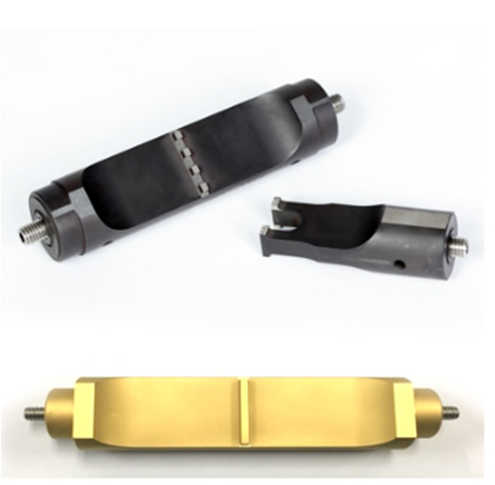

Official Tab-Welding supplier to LG Energy Solution — supplying Ochang (Korea) & Arizona (US) plants

Supplying Ultium Cells Plant 1 & 2 — LG Energy Solution & GM joint venture

Technical Specifications

Battery Assembly Equipment — Battery Assembly

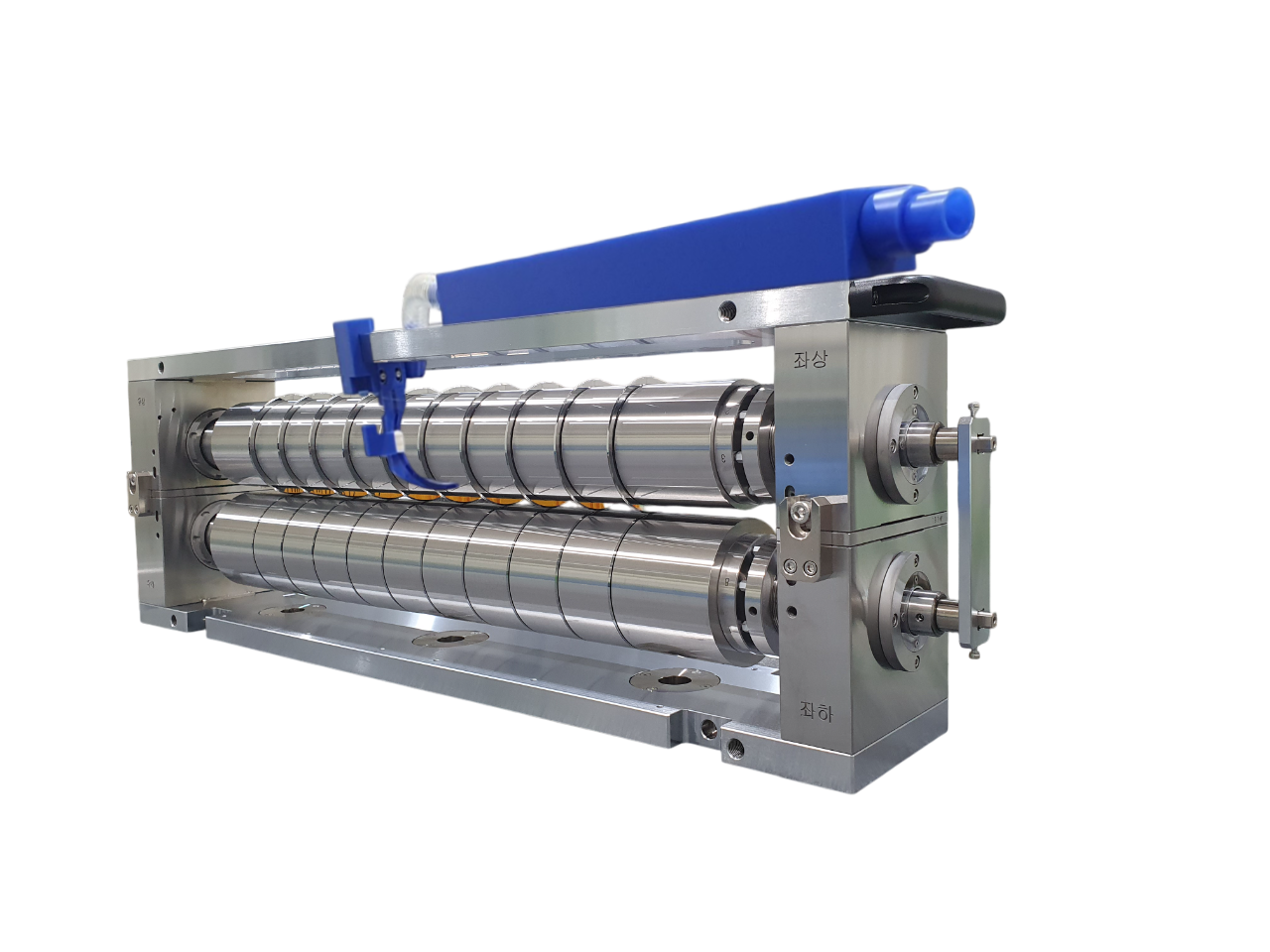

Knife Unit

Slitting Cutter Unit

Usage	Carbide knife unit for precision slitting of electrode web to specified width
Tolerance	±0.005mm
Lead Time	Approx. 20–25 days after order
Process	Design→Machining→Assembly→Inspection/Test→Delivery

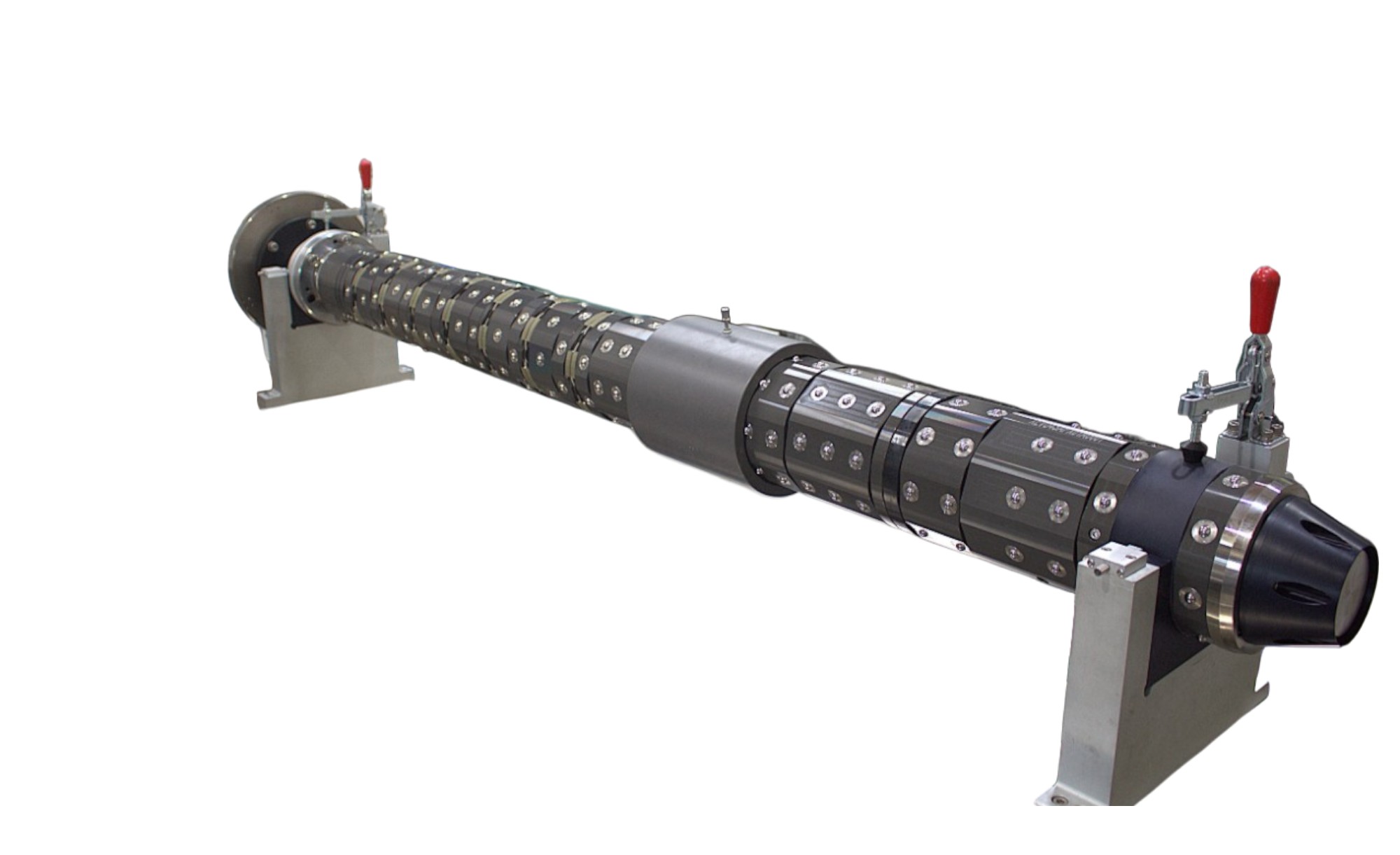

PX-SHAFT (6 inch)

Winder Shaft

Usage	6-inch shaft that binds cut cells via pressure and winds in roll form during winding preparation
Tolerance	±0.005mm
Lead Time	Approx. 20–25 days after order
Process	Design→Machining→Assembly→Inspection/Test→Delivery

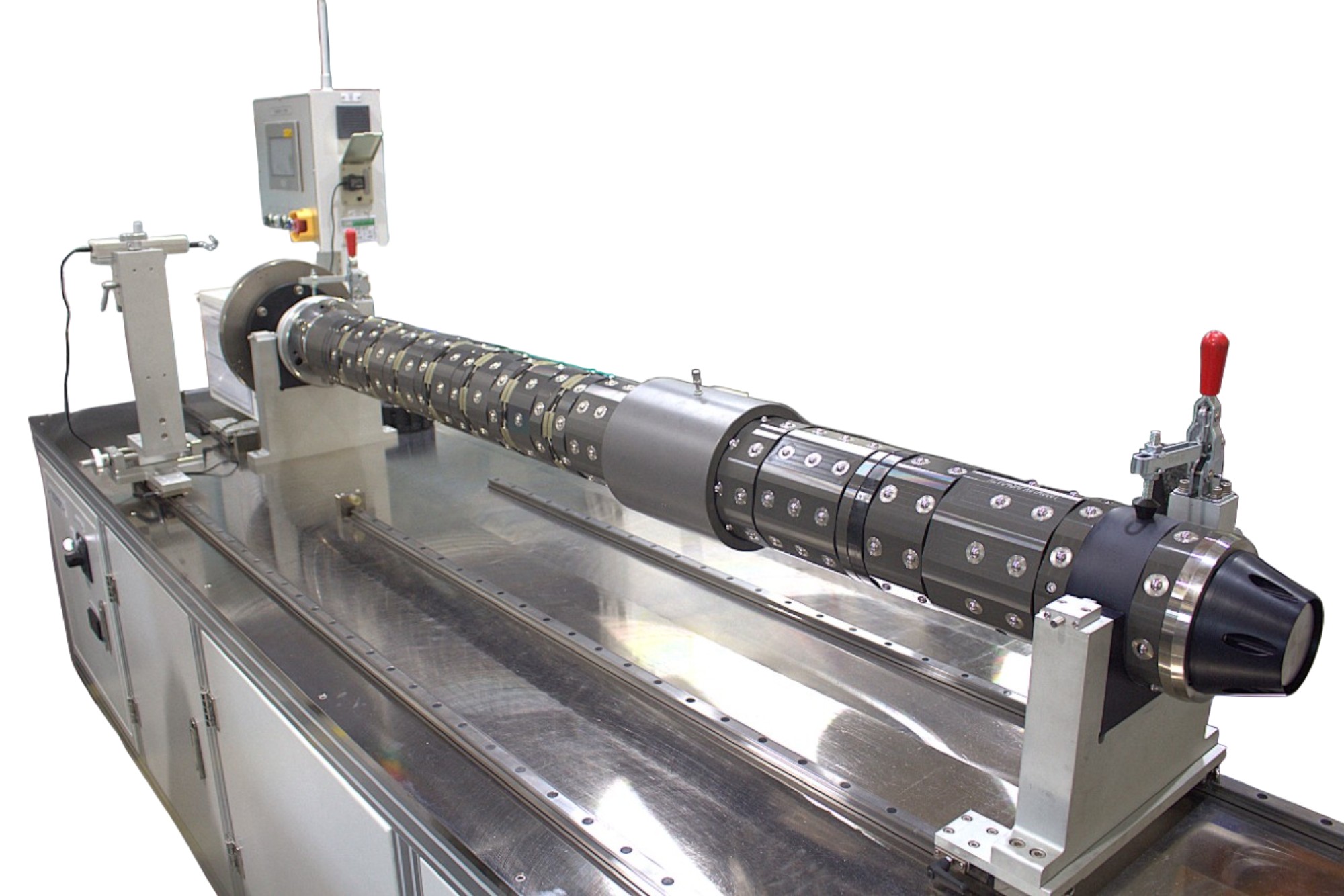

PX-SHAFT Tension Meter

1–5 KGF · RPM 10–100

Usage	Real-time tension measurement and control of PX-SHAFT in roll-material processes — 1–5 KGF, RPM 10–100
Tolerance	±0.01 KGF
Lead Time	Approx. 4 weeks after order
Process	Design→Machining→Assembly→Calibration→Inspection/Test→Delivery

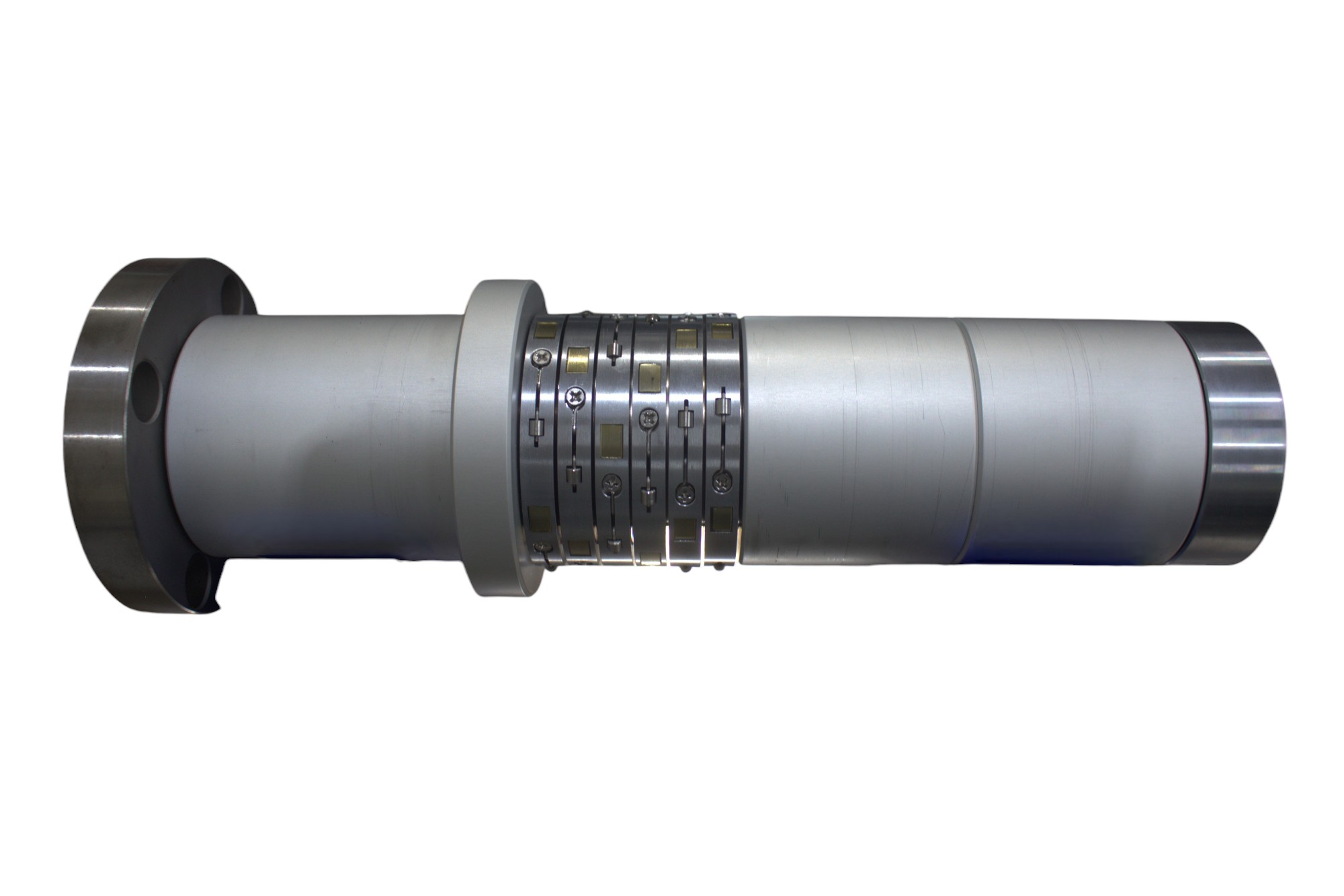

NS-SHAFT

Battery Winding Unit

Usage	Winding unit that binds cut cells via pressure into roll form in secondary battery production
Tolerance	±0.005mm
Lead Time	Approx. 25 days after order
Process	Design→Machining→Assembly→Inspection/Test→Delivery
