Key Engineering Features

Manufactures cavity blocks (Moving Cavity, Upper Main, Upper Gate Block) for semiconductor EMC molding, plus TUBE Plate dies and Oil Cooler components. Stable dimensional accuracy under temperature variation through thermal expansion control design.

Full lineup of Moving Cavity, Upper Main & Upper Gate Blocks for EMC molding

Semiconductor precision molds incl. Moving Cavity Block & TUBE Plate

TUBE Plate dies and precision Oil Cooler components

Semiconductor precision molds incl. Moving Cavity Block & TUBE Plate

CTE-controlled material design ensures dimensional stability in high-temperature processes

Semiconductor precision molds incl. Moving Cavity Block & TUBE Plate

The Engineering Advantage

Full lineup of Moving Cavity, Upper Main & Upper Gate Blocks for EMC molding

TUBE Plate dies and precision Oil Cooler components

CTE-controlled material design ensures dimensional stability in high-temperature processes

Technical Specifications

Semiconductor Process Molds — Semiconductor

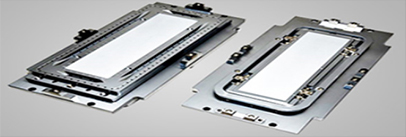

Moving Cavity Block

Semiconductor Mold Main Part

Usage	Core block that forms the resin cavity in semiconductor package EMC molding process
Tolerance	±0.002mm
Lead Time	16 weeks after order
Process	설계→소재 입고→정밀 MC 가공→방전 가공→정밀 연삭→검사/TEST→납품

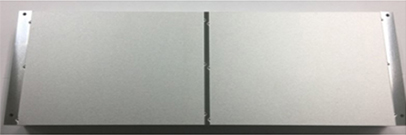

Upper Main Block

For Chip Encapsulation

Usage	Main block mounted on the upper part of EMC molding equipment to form the cavity
Tolerance	±0.002mm
Lead Time	16 weeks after order
Process	설계→소재 입고→정밀 MC 가공→방전 가공→정밀 연삭→검사/TEST→납품

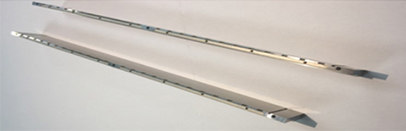

Upper Gate Block

Resin Injection Gate

Usage	Block that forms the gate shape for injecting EMC resin into the cavity
Tolerance	±0.003mm
Lead Time	14 weeks after order
Process	설계→소재 입고→정밀 MC 가공→방전 가공→정밀 연삭→검사/TEST→납품

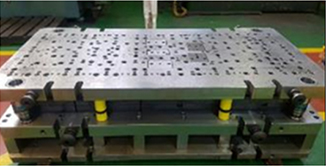

TUBE Plate Die

For Oil Cooler

Usage	Die for forming the internal TUBE of Oil Cooler to precise shape
Tolerance	±0.005mm
Lead Time	12 weeks after order
Process	설계→소재 입고→NC 가공→정밀 연삭→조립→검사/TEST→납품

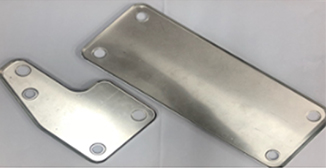

Oil Cooler Component

TUBE Plate based

Usage	Precision Oil Cooler component for thermal management of semiconductor process equipment
Tolerance	±0.005mm
Lead Time	10 weeks after order
Process	Design→Material Receipt→NC Machining→Assembly→Inspection/Test→Delivery
