Key Engineering Features

We supply ultrasonic horns and ANVIL support components as a set for welding cell tabs to current collectors in li-ion assembly processes (winding & stacking). Our torsional horns for next-generation 46φ tabless batteries — first domestically localized in Korea with 3 patents — are officially supplied to LG Energy Solution's Ochang plant, with US Arizona mass production scheduled for end of 2026.

First domestic localization of torsional horns for 46φ tabless batteries — replacing 100% imported core technology

Ultrasonic welding parts for li-ion winding & stacking processes — Ultrasonic Horn, Torsional Horn, ANVIL

Ø3.5-100mm torsional horns developed and MP-verified — officially supplying CRW torsional horn re-grinding service to LGES Ochang plant

Ultrasonic welding parts for li-ion winding & stacking processes — Ultrasonic Horn, Torsional Horn, ANVIL

3 patents on torsional horns — selected for SME Technology Innovation national R&D project (Aug 2024)

Ultrasonic welding parts for li-ion winding & stacking processes — Ultrasonic Horn, Torsional Horn, ANVIL

The Engineering Advantage

Integrated winding & stacking solution — Ultrasonic Horn (±0.01mm) and ANVIL (ceramic·SKD-11) supplied as a set

Global supply chain expansion — US Arizona mass production scheduled for end of 2026; NFF winder parts discussions with LGES US in progress

Active customer co-development — L-corp 130mm torsional horn, H-corp metered dispensing machine, K-corp roll welder requests in progress

Technical Specifications

Ultrasonic Equipment — Ultrasonic Welding

Ultrasonic Horn

20·40kHz, Winding & Stacking

Usage	Ultrasonic horn that attaches TABs to designated cell positions during winding mandrel operation
Tolerance	±0.01mm
Lead Time	20 days after order (varies by shape)
Process	Design→Machining→Assembly→Inspection/Test→Delivery

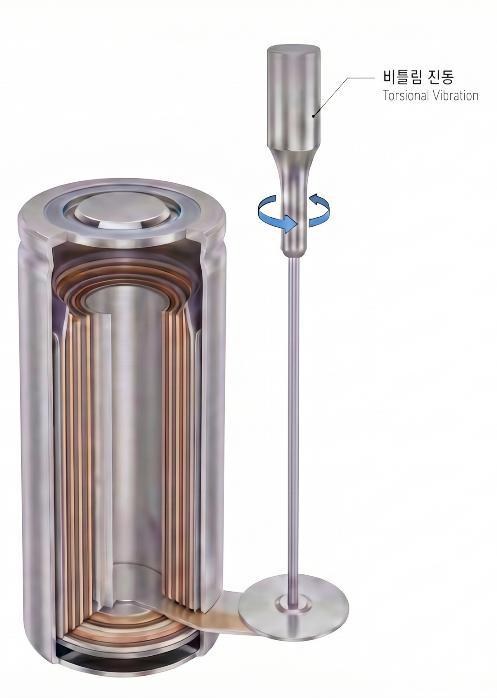

Torsional Horn

Ø3.5–100mm, CRW · 46φ Tabless

Usage	Transmits torsional ultrasonic vibration to electrodes for welding tabless structures in 46φ tabless cylindrical cell fusion process
Tolerance	±0.005mm
Lead Time	16 weeks after order (regrinding separate)
Process	Design→Transducer Matching→Precision Machining→Frequency Tuning→MP Verification→Delivery

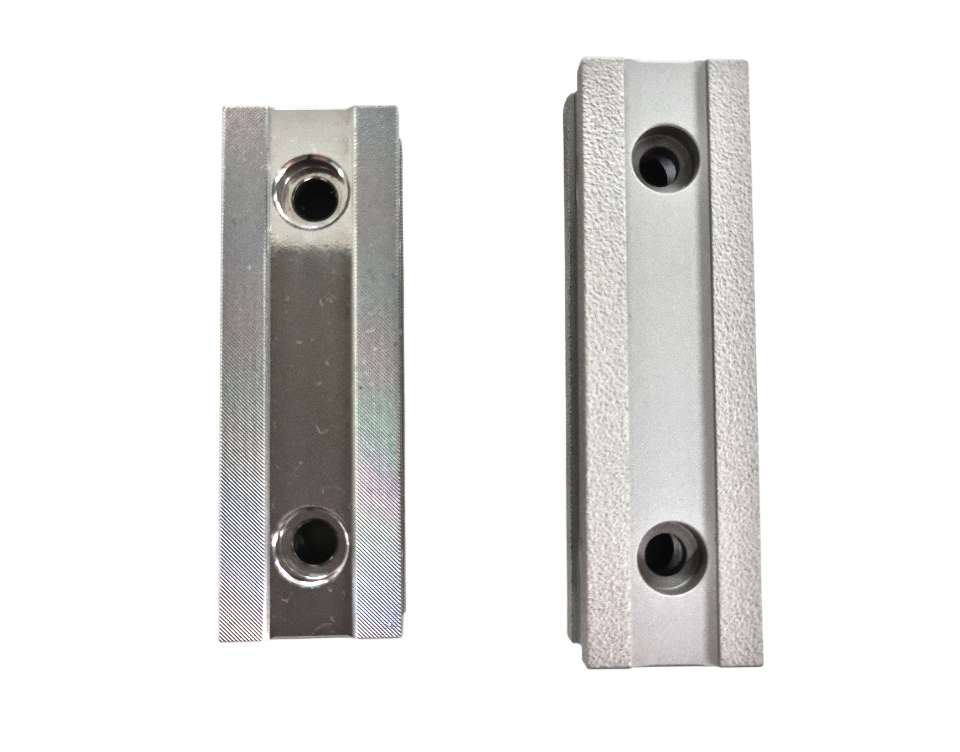

ANVIL

Ceramic·SKD-11, Ultrasonic Welding Anvil

Usage	Support role for TAB movement and welding during winding operation (applied during ultrasonic welding)
Tolerance	±0.01mm
Lead Time	15 days after order (varies by size)
Process	Design→Machining→Assembly→Inspection/Test→Delivery
